RANCO THERMOSTATS
1

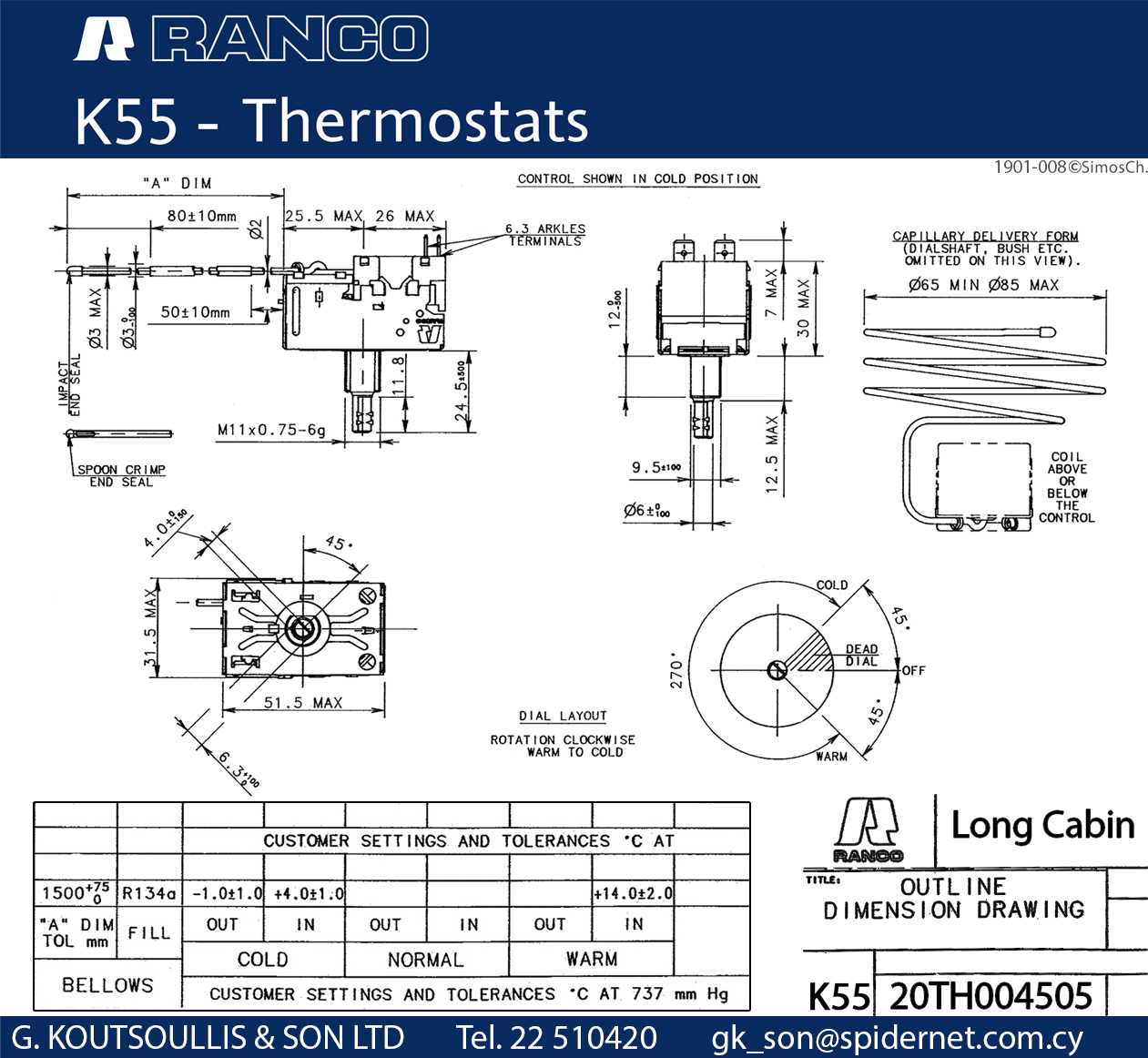

LONG CABIN K55 cycling thermostat with high rated (16 Amp.) SPST switch and rear electrical terminals.
FEATURES:
- Compact size
- Fixed or adjustable operating range
- Fixed differential
- Standard mounting or with bracket
- Capillary lengths available from 300 to 3000 mm with different forms or with bulb
- Approved by the main international bodies
APPLICATIONS:
- Refrigerators
- Freezers
- Bottle coolers
- Liquid coolers
- Refrigerated display counters
TECHNICAL SPECIFICATIONS:
- Application range between -40°C/-40°F and 10°C/50°F
- Faston terminals 6.3 or 4.8 mm
- Electrical rating terminals 3 and 4 16(16 max 80)A at 250V

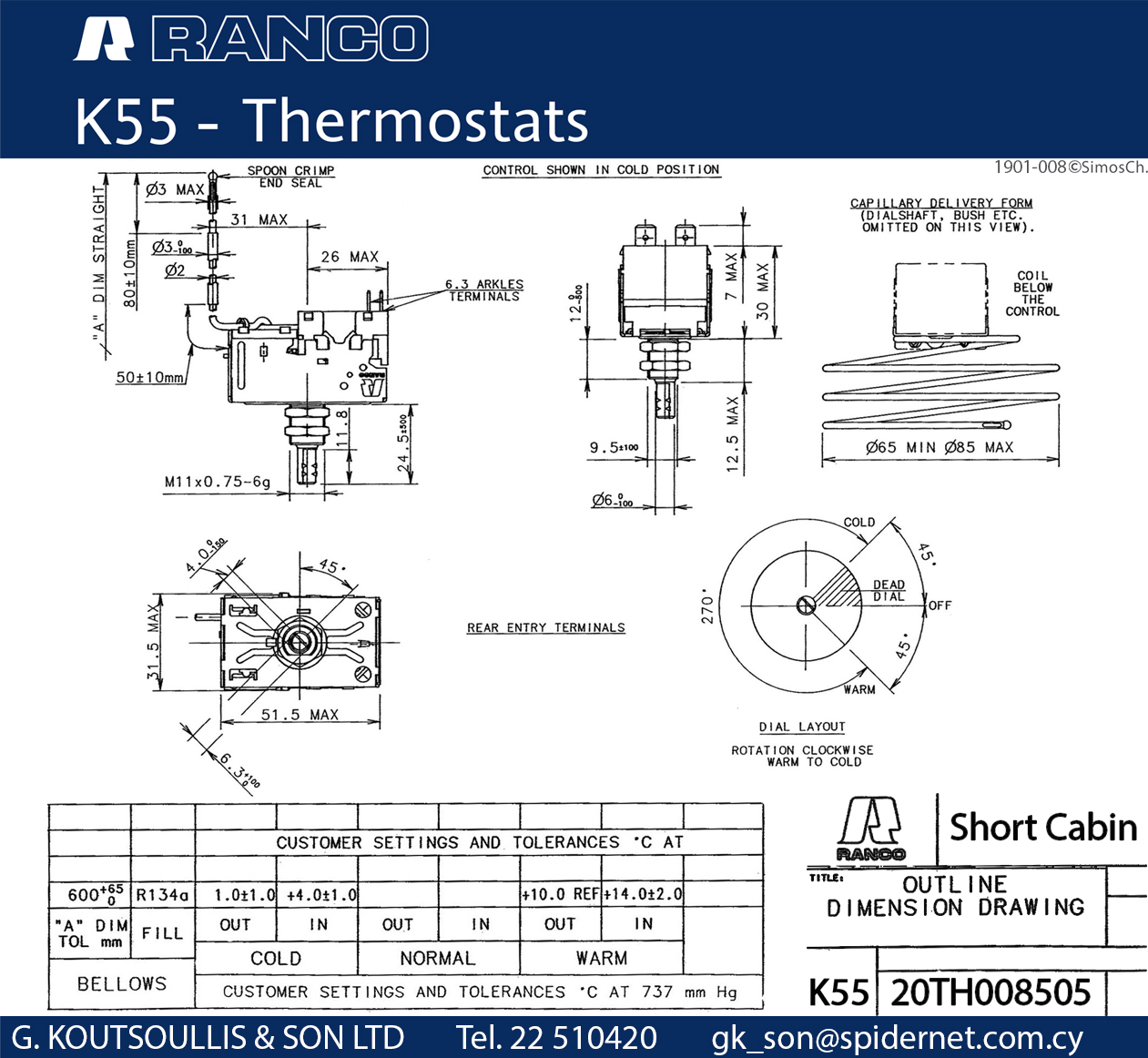

SHORT CABIN K55 cycling thermostat with high rated (16 Amp.) SPST switch and rear electrical terminals.
FEATURES:
- Compact size
- Fixed or adjustable operating range
- Fixed differential
- Standard mounting or with bracket
- Capillary lengths available from 300 to 3000 mm with different forms or with bulb
- Approved by the main international bodies
APPLICATIONS:
- Refrigerators
- Freezers
- Bottle coolers
- Liquid coolers
- Refrigerated display counters
TECHNICAL SPECIFICATIONS:
- Application range between -40°C/-40°F and 10°C/50°F
- Faston terminals 6.3 or 4.8 mm
- Electrical rating terminals 3 and 4 16(16 max 80)A at 250V

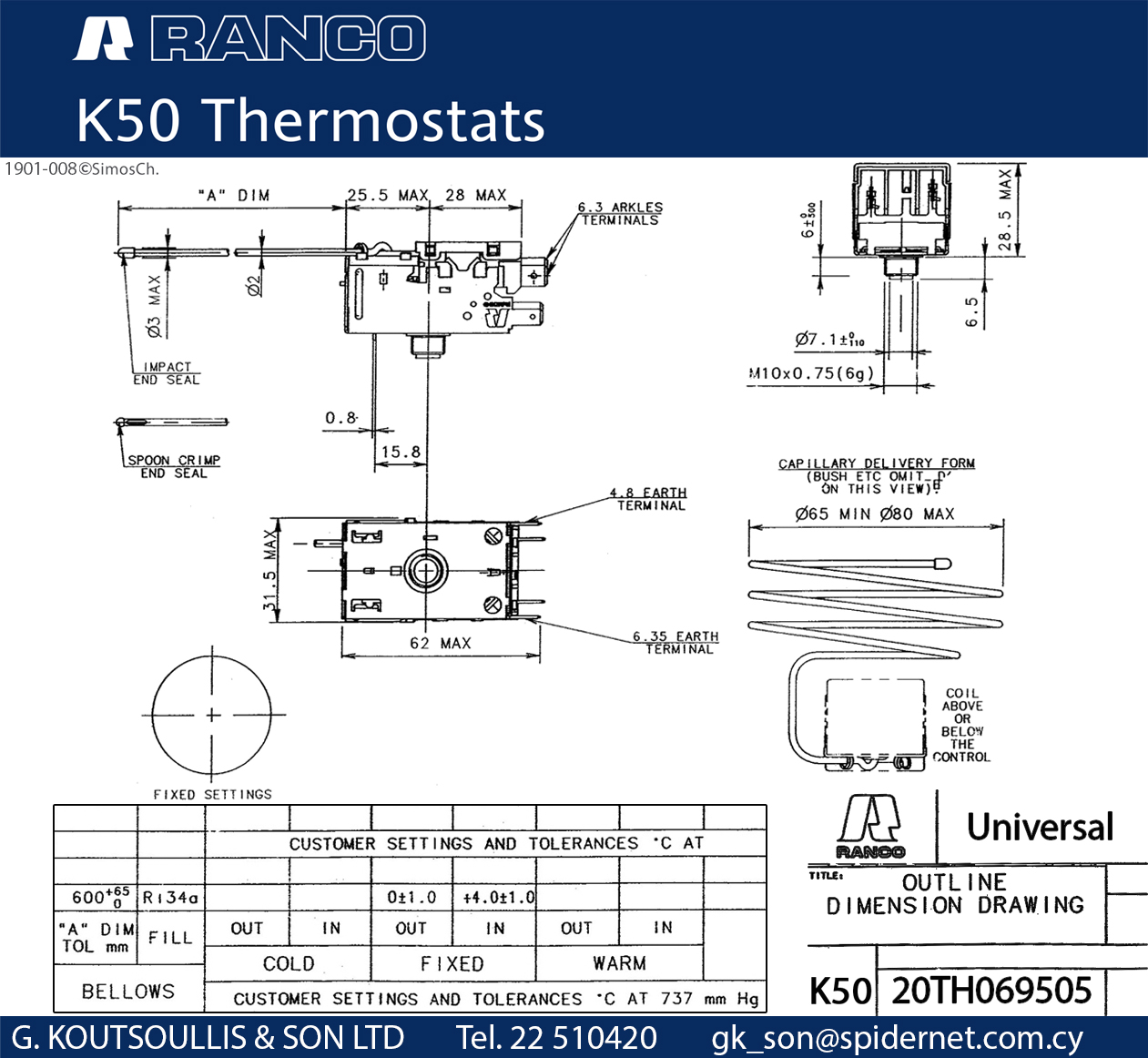

UNIVERSAL K50 cycling thermostat with SPST close-on-rise switch.
FEATURES:
- Compact size
- Fixed or adjustable operating range
- Fixed differential
- Standard mounting or with bracket
- Capillary lengths available from 300 to 3000 mm with different forms or with bulb
- Approved by the main international bodies
APPLICATIONS:
- Refrigerators
- Freezers
- Bottle coolers
- Liquid coolers
- Refrigerated display counters
- Air conditioning units
TECHNICAL SPECIFICATIONS:
- Application range between 40°C/-40°F and 10°C/50°F
- Faston terminals 6.3 or 4.8 mm
- Electrical rating terminals 3 and 4 6(6)A at 250V-(12A at 12V DC)
